Coaxial Cable RG59 2DC with Power Cable
Coaxial Cable RG59 2DC with Power Cable
Model
WM-COAX-031

Item specifics

Type
Coaxial
Number of Conductors
1
color1
black
color2
white

Review

Description

Coaxial Cable China Manufacturer Supplier

Coaxial Cable RG59 2DC with Power Cable

Impedance:75±3Ohm             Capacitance:16.0pF./Ft. Nom.            Velocity of Propagain:84%

Reutm Los:20dB min(5-2300MHZ)                                               FOB Pront :ShangHai/NingBo

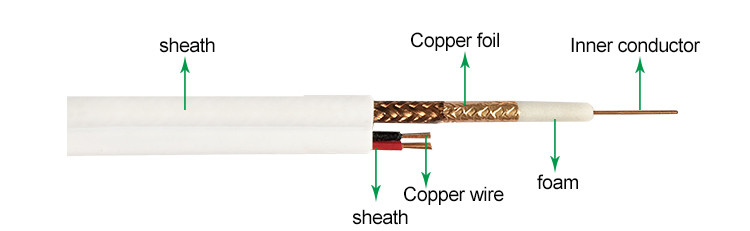

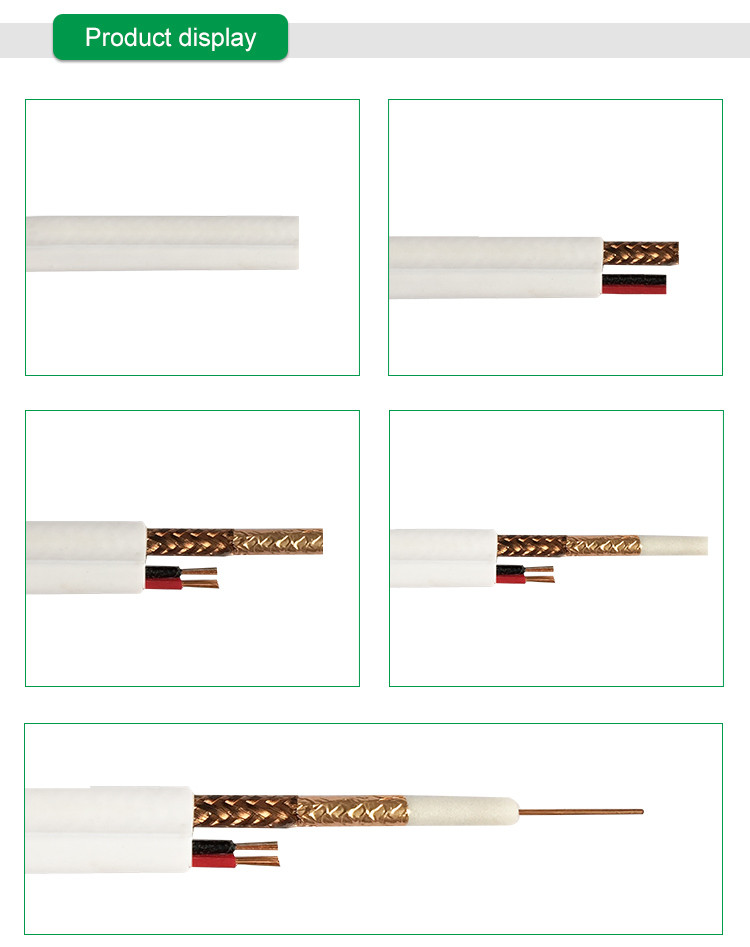

1) Specifications
Center Conductor:0.81+0.005mm Solid Copper
Dielectric:3.77+0.05mmFoam PE
Braid Coverage:Copper Color Foil + 128X0.12mm CCA Pitch 20  Coverage 95%
Jacket:6.1+0.10mm PVC
Jacket Thickness:0.0381mm
Center Conductor:2-18 AWG Stranded CCA 2 (7X0.38mm)
Dielectric:Solid PE 1.85mm   Red/Black
Jacket:3.81mm
2) Characteristics
Spark Test:2000 VAC
Dielectric Strength:Conductor to Shield: 2000VDC
Impedance:75+3 Ohm
Capacitance:16.0pF./Ft. Nom.
Velocity of Propagation:84%
DCR: Conductor:10.5 Ohms/1000Ft.(Nom.) Coax  6.6 Ohms/1000Ft(Nom.) 18 AWG
Return Loss:20dB min (5-860MHz)  15dB min(860-2500Mhz)
SRL:20dB (10-350MHz) 100% Swept Tested
3)Attenuation
Attenuation[@68o F. (20o C.)]
Frequency (MHz)Max. (dB/100 ft.)Frequency (MHz)Max. (dB/100 ft.)
50.864005.10
552.054505.40
832.455005.70
1873.605505.95
2113.806006.20
2504.107506.97
3004.458657.52
3504.8010008.12
