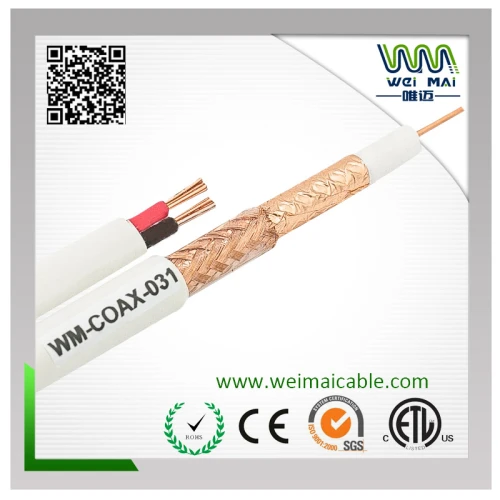

Coaxial Cable RG59 with Power Cable
- Model
- WM-COAX-031
Item specifics
- Type
- Coaxial
- Number of Conductors
- 1
- color1
- black
- color2
- white
Review
Description
COAXIAL CABLE RG59 With Power 75Ohm

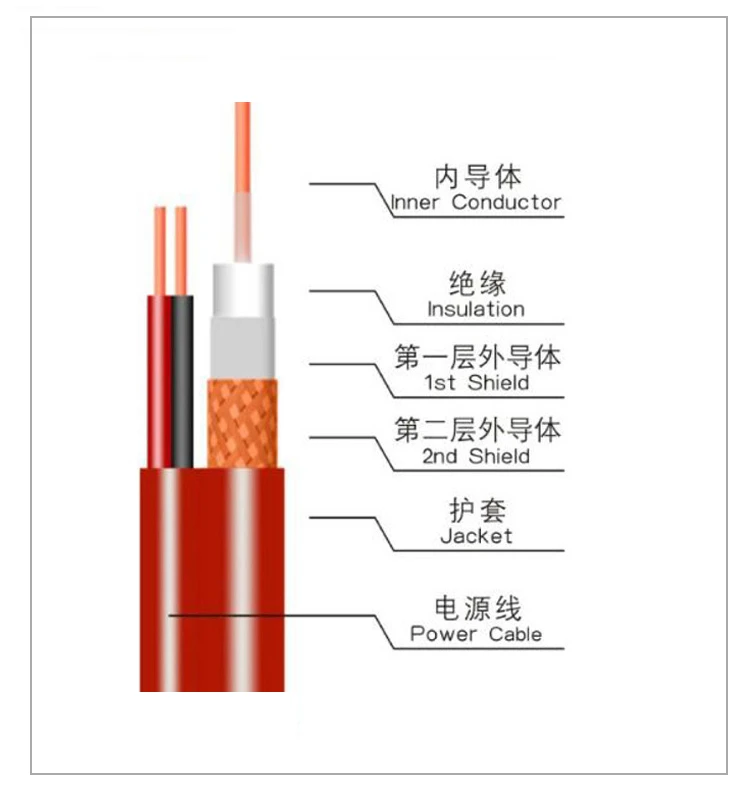

Product Construction
Inner Conductor:Anaerobic Copper Wire (Diameter￠0.81mm)
Insulation:Foam PE (Diameter￠3.66mm)
1st Shield:AL Foil (Coverage≥118%）
2nd Shield:CCA (Coverage≥90%）
Jacket:PVC (Diameter￠6.10mm)
Power Cable(red/black):BC 28/0.14
Other:Color、printing accoring to customer’s requirement
Mechanical characteristic | |||
Minimum bending radius | 50mm | ||
Inner conductor adhesion force | ＞18N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
75±3 | 66 | 5---1002MHz＞20 | |
1003---2200MHz＞17 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
5.00 | 2.82 | 0.86 | |
55.00 | 6.72 | 2.05 | |
211.00 | 12.46 | 3.80 | |
300.00 | 14.59 | 4.45 | |
450.00 | 17.70 | 5.40 | |
750.00 | 22.85 | 6.97 | |
1000.00 | 26.64 | 8.13 | |
1200.00 | 29.40 | 8.97 | |
1450.00 | 32.41 | 9.89 | |
2200.00 | 42.78 | 6.12 | |
