Coaxial Cable RG59 Copper Solid PE 75 Ohm
- Model
- WM-COAX-009
Review
Description
Coaxial Cable China Manufacturer Supplier Made in China
Coaxial Cable RG59 Copper Solid PE 75 OHM
Impedance:75±3Ohm Capacitance:54±3pf/m Velocity of Propagain:85%
Reutm Los:20dB min(5-2300MHZ) FOB Pront :ShangHai/NingBo

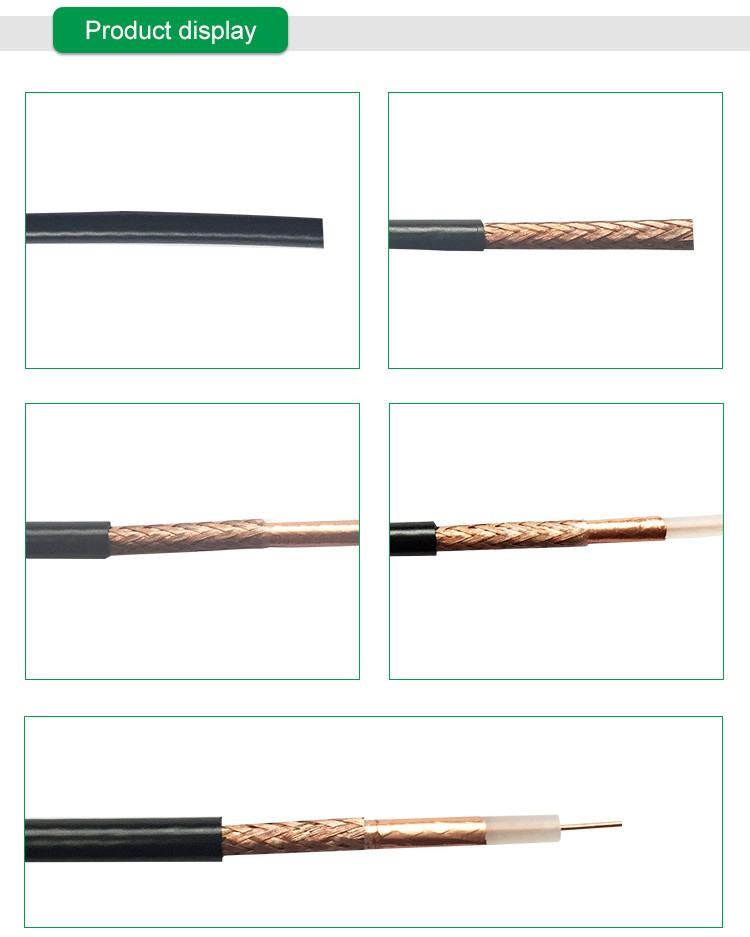

1) Construction | |||||||||||
Center Conductor: | 0.81+0.01mm Solid Copper | ||||||||||
Dielectric: | 3.7+0.05mmSolid PE | ||||||||||
Shield: | Copper Color Foil | ||||||||||
Braid Coverage: | 128X0.12mm CCA Pitch 30 90% | ||||||||||
Shield: | High temperature Al Foil | ||||||||||
Jacket: | 6.10+0.10mmPVC | ||||||||||
Jelly/APD | Per Customers Special Requirement | ||||||||||
2) Characteristics | |||||||||||
| |||||||||||
| Attenuation |
| Attenuation | [@68o F. (20o C.)] |
| Frequency (MHz) | Max. (dB/100 ft.) | Frequency (MHz) | Max. (dB/100 ft.) |
| 5 | 0.86 | 400 | 5.10 |
| 55 | 2.05 | 450 | 5.40 |
| 83 | 2.45 | 500 | 5.70 |
| 187 | 3.60 | 550 | 5.95 |
| 211 | 3.80 | 600 | 6.20 |
| 250 | 4.10 | 750 | 6.97 |
| 300 | 4.45 | 865 | 7.52 |
| 350 | 4.80 | 1000 | 8.12 |
