RG11 TRI SHIELD
Review
Description
COAXIAL CABLE RG11 Triple Shield 75Ohm

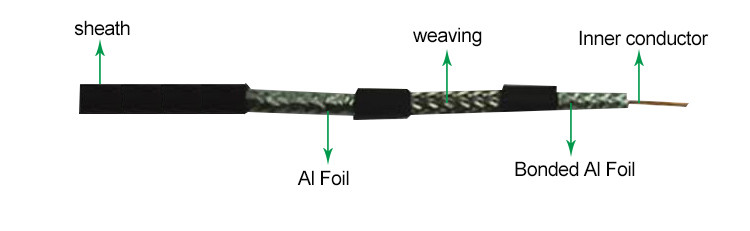

Product Construction
Inner Conductor:CCS (Diameter￠1.63mm)
Insulation:Foam PE (Diameter￠7.13mm)
1st Shield:Bonded AL/PET/AL (Coverage≥118%）
2nd Shield:AL-Mg (Coverage≥77%）
3rd Shield: AL/PET/AL (Coverage≥118%）
Jacket:FR-PVC-PE (Diameter￠10.16mm)
Other:Color、printing accoring to customer’s requirement
Mechanical characteristic | |||
Minimum bending radius | 100mm | ||
Inner conductor adhesion force | ＞44N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
75±3 | 82 | 5---1002MHz＞20 | |
1003--3000MHz＞15 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
5.00 | 1.25 | 0.38 | |
55.00 | 3.15 | 0.96 | |
211.00 | 6.23 | 1.90 | |
350.00 | 7.93 | 2.42 | |
450.00 | 9.02 | 2.75 | |
550.00 | 9.97 | 3.04 | |
750.00 | 11.97 | 3.65 | |
1000.00 | 14.26 | 4.35 | |
1450.00 | 17.34 | 5.29 | |
1850.00 | 20.07 | 6.12 | |
2250.00 | 22.16 | 6.76 | |
3000.00 | 24.26 | 7.40 | |
