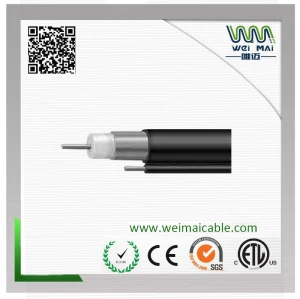

RG500(P3.500.JCA)
Impedance:75±3Ohm Capacitance:50±3nf/km
Velocity of Propagain:87% FOB Pront :ShangHai/NingBo

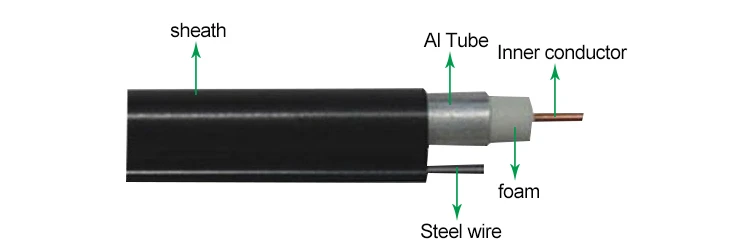

| 1) Construction |
|---|
| Center Conductor: | 2.77+0.01mm Solid Copper/Copper Clad Aluminum |
|---|---|
| Dielectric: | 11.43+0.05mmFoam PE |
| Outer Conductor: | 12.70mm Aluminum Tube |
| Outer Conductor Thickness: | 0.64mm |
| Jacket: | 14.22+0.05mm PVC / PE |
| Jacket Wall Thickness: | 0.76mm |
| Messenger: | 2.77mm Steel |
| Jelly/APD | Per Customers Special Requirement |
| 2) Characteristics |
|---|
| Impedance: | 75+3 Ohm |
|---|---|
| Capacitance: | 50+3nF/km, 15.3+1pF/ft |
| Velocity of Propagation: | 87% |
| 3) Attenuation |
|---|
| Attenuation | [@68o F. (20o C.)] |
|---|
| Frequency (MHz) | Maximum (dB/100 ft.) | Maximum (dB/100 m) |
|---|---|---|
| 5 | 0.16 | 0.52 |
| 50 | 0.5 | 1.64 |
| 108 | 0.73 | 2.39 |
| 150 | 0.86 | 2.82 |
| 193 | 1.01 | 3.31 |
| 250 | 1.15 | 3.77 |
| 300 | 1.26 | 4.13 |
| 350 | 1.36 | 4.46 |
| 400 | 1.47 | 4.82 |
| 450 | 1.56 | 5.12 |
| 500 | 1.65 | 5.41 |
| 550 | 1.75 | 5.74 |
| 600 | 1.83 | 6.00 |
| 750 | 2.04 | 6.69 |
| 1000 | 2.41 | 7.91 |
