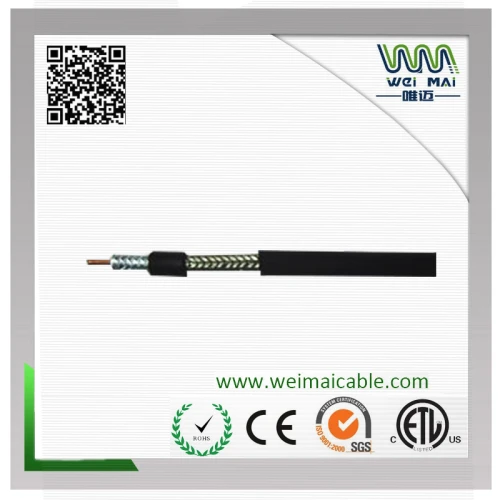

RG400 same as LMR400
Physical Dimensiton | Attenuation@68F (20°C) | |||
Component | mm | Frequency（MHz） | Maximum(dB/100m) | |
Inner conductor | 2.74 | 30 | 2.2 | |
Dielectric | 7.24 | 50 | 2.9 | |
Shield(Coverage %) | Tin/BC Copper 95% | 150 | 5.0 | |
Jacket | 10.29 | 220 | 6.1 | |
Jacket wall thickness | 1.07 | 450 | 8.9 | |
Electrical Characteristics | 900 | 12.8 | ||
Impedance Ohms | 50±2 | 1500 | 16.8 | |
Nominal Capacitance pF/m | 67 | 1800 | 18.6 | |
Velocity of Propagation | 66% | 2000 | 19.6 | |
Minimum Return Loss dB | 2500 | 22.2 | ||
1-1000 Mhz | 23 | |||
1000-2250 Mhz | 20 | |||
