Coaxial cable RG59 2DC 75ohm

Group Coaxial Cable RG59 75Ohm
PriceUS $0.15 / meter
Min. Order 10000 meter
Terms of Payment L/C, D/P, T/T, Discuss
Update Time 2017-12-08
Item specifics
Place of OriginZhejiang,China(Mainland)
Brand NameWEIMAI
Conductor MaterialCCS/CCA/Solid Copper
Insulation MaterialPE
Braid Density40%-90%
1st shieldBonded Foil
2st shieldBraided Shield
JacketPVC
  • Description
  • Product review

Coaxial Cable China Manufacturer Supplier

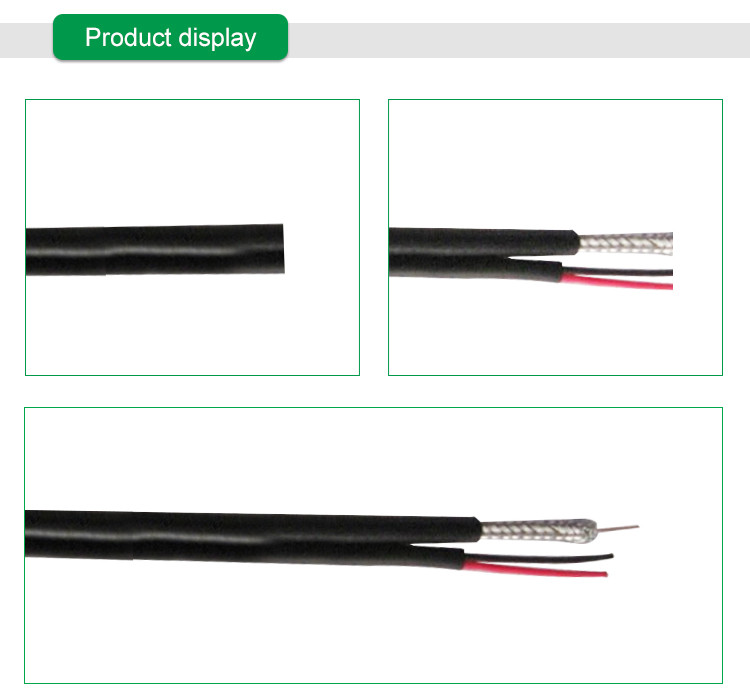

Coaxial Cable RG59 2DC 75ohm

Impedance:75±3Ohm                                                      Capacitance:16.0±3pf/ft(Nom.)

Velocity of Propagain:84%                                              FOB Pront :ShangHai/NingBo


Specifications
Center Conductor0.81+0.005mmSolid Copper
Dielectric3.66+0.05mm Fomd PE
Braid Coverage95%Copper
Jacket6.1+0.010mm PVC
Jacket Thickness0.0381mm
Center Conductor            2-18 AVG Stranded Copper (7X0.38mm)
Dielectric     Solid PE 1.85mm
Jacket  3.81mm
Characteristics
Sparker Test:2000AVC
Dielectric StrengthConductor to shield:2000DVC
Impedance:75±3OHM
Capacitance16.0±3pf/ft(Nom).
Velocity of propagation84%
DCR:10.5ohms/1000ft.(nom.)Coax
