Coaxial Cable RG412 Truck Cable

Group RG412 cable
PriceUS $0.2 / meter
Min. Order 10000 meter
Terms of Payment L/C, D/P, T/T, Discuss
Update Time 2017-12-08
Item specifics
Place of OriginZhejiang,China(Mainland)
Brand NameWEIMAI
Conductor MaterialCCS/CCA/Solid Copper
Insulation MaterialPE
Braid Density40%-90%
1st shieldBonded Foil
2st shieldBraided Shield
JacketPVC
  • Description
  • Product review

Coaxial Cable China Manufacturer Supplier

Coaxial Cable RG412 Truck Cable

Impedance:75±3Ohm             Capacitance:50±3pf/m

Velocity of Propagain:87%                 FOB Pront :ShangHai/NingBo

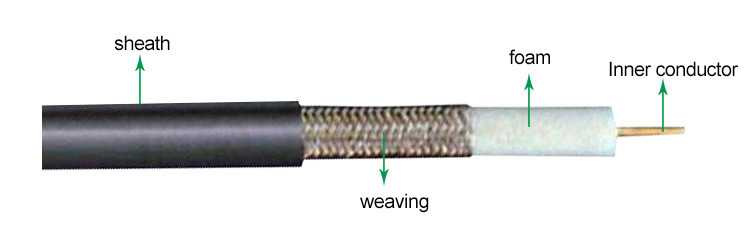

Construction
Center Conductor
2.26±0.01mmSolid Coppr/ Coppr Clad Aluminum
Dielectric
9.19±0.05mmF
Outerine Condutor10.46mm Aluminum Tube
Outerine Condutor Thiness
0.64mm
Jacket
11.99+0.05mmPVC/PE
Jacket Wall Thickness
0.76mm
Messenger2.77mm Steel
Jelly/ADPPer Customers Special  Requirement
Characteristics
Impedance:
75±3OHM
Capacitance
50±3nf/ft(Nom). 15.3±3pf/ft(Nom).
Velocity of propagation
87%
Attenuation
Attenuation
{68°f.(20℃.)}
Frequency(MHz)
MAX.(dB/100ft.)
MAX.(dB/100ft.)
50.190.62
500.632.07
1080.943.08
1501.123.67
1931.284.20
2501.474.82
3001.625.31
3501.785.84
4001.886.17
4502.016.59
5002.146.99
5502.247.35
6002.357.71
7502.658.69
10003.1110.20
