Coaxial Cable RG213 50ohm
- Price
- US $0.1
- Model
- WMRG21301
- MOQ
- 10000 meter
Item specifics
- Place of Origin
- Zhejiang,China(Mainland)
- Brand Name
- WEIMAI
- Conductor Material
- CCS/CCA/Solid Copper
- Insulation Material
- PE
- Braid Density
- 40%-90%
- 1st shield
- Bonded Foil
- 2st shield
- Braided Shield
- Jacket
- PVC
Review
Description
Coaxial Cable China Manufacturer Supplier
Coaxial Cable RG213 50ohm
Impedance:50±3Ohm Capacitance:30.8±3pF/Ft(Nom.) Velocity of Propagain:66%
SRL:15dB(10 to 300 MHz) Swept Tested FOB Pront :ShangHai/NingBo

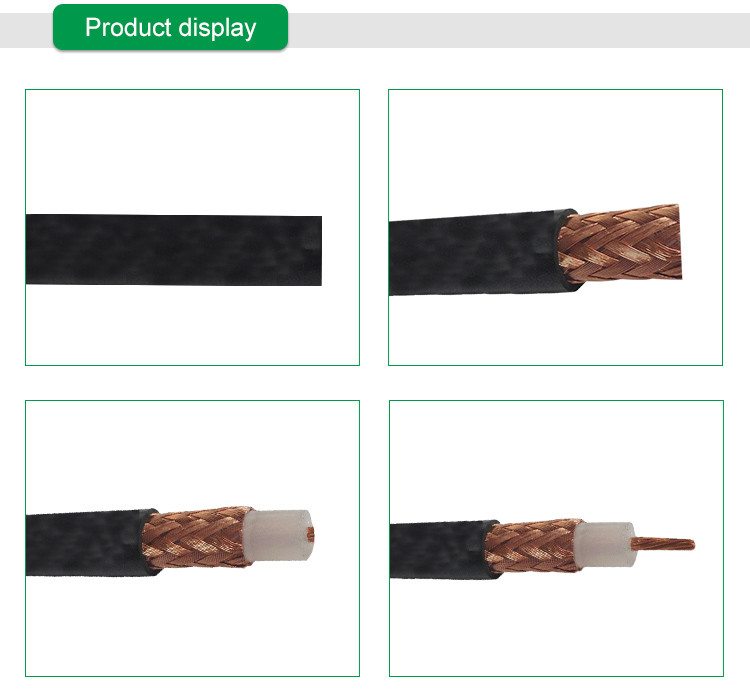

| 1)Construction |
|---|
| Center Conductor: | 13AWG （2.63mm）7X0.75Solid Copper |
|---|---|
| Dielectric: | 7.24±0.02mm Solid PE |
| Braid Coverage: | 96%:34AWG(0.16mm) Copper |
| Jacket: | 10.30±0.10mm PVC |
| Jacket Thickness: | 1.10mm |
| 2)Charactruction |
|---|
| Sparker Test: | 4000AVC |
|---|---|
| Dielectric Strength | Conductor to shield:10000DVC |
| Impedance: | 50±3OHM |
| Capacitance: | 30.8±pf/ft(Nom). |
| Velocity of propagation: | 66% |
| DCR: | Conductor:2.00 ohms/1000ft |
| SRL： | 15dB(10 to 300Mhz) swept Tested |
| 3)Attenuation |
|---|
| Attenuation | {68°f.(20℃.）} |
|---|---|
| Frequency(MHz) | Nom.(dB/100ft.) |
| 100 | 2.20 |
| 400 | 4.60 |
| 1000 | 6.00 |
