feeder cable
| Specifications |
| 1.CE RoHs Certification |
| 2.1 Year Quality Guarantee |

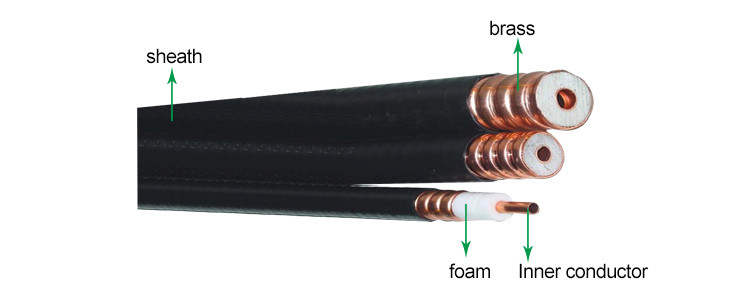

| Feeder cable |
| Feeder cable/RF cable 3/8" 7/8" 1-1/4" 1-5/8" : |
| Ues to broadcast and television, microwave telecommunication, military, aerospace, vessel . |
| Specifications: |
Model
| Characteristic
Impedance
| Inner Conductor
| Insulation
| Outer Conductor
| Outer Sheath
| Attenuationat 900MHz
| Attenuationat1800 MHz |
| | (Ohm) | (mm) | (mm) | (mm) | (mm) | dB/100m) | dB/100m) |
| 1/4" SF | 50 | 1.90 | 5.00 | 6.40 | 7.60 | 18.40 | 27.10 |
| 1/4" | 50 | 2.60 | 6.00 | 7.70 | 8.90 | 13.10 | 19.10 |
| 3/8" SF | 50 | 2.60 | 7.00 | 9.00 | 10.20 | 13.50 | 19.70 |
| 3/8" | 50 | 3.10 | 8.00 | 9.50 | 11.10 | 10.90 | 16.00 |
| 1/2" SF | 50 | 3.55 | 9.00 | 12.00 | 13.70 | 10.00 | 14.50 |
| 1/2" | 50 | 4.80 | 12.00 | 13.90 | 16.00 | 7.15 | 10.52 |
| 5/8" | 50 | 7.00 | 17.00 | 19.70 | 22.00 | 5.07 | 7.54 |
| 7/8" F | 50 | 9.40 | 22.00 | 24.90 | 27.50 | 4.05 | 6.03 |
| 7/8" SF | 50 | 9.40 | 22.00 | 24.90 | 27.50 | 4.30 | 6.30 |
| 7/8" | 50 | 9.00 | 22.00 | 24.90 | 27.50 | 3.87 | 5.84 |
| 7/8" Low Loss | 50 | 9.45 | 23.00 | 25.40 | 28.00 | 3.68 | 5.54 |
| 1-1/4" | 50 | 13.10 | 32.00 | 35.80 | 39.00 | 2.82 | 4.27 |
| 1-5/8" | 50 | 17.30 | 42.00 | 46.50 | 50.00 | 2.41 | 4.10 |
