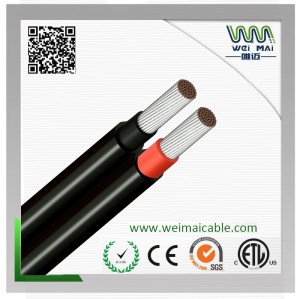

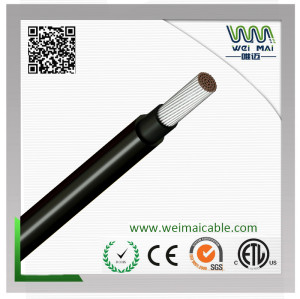

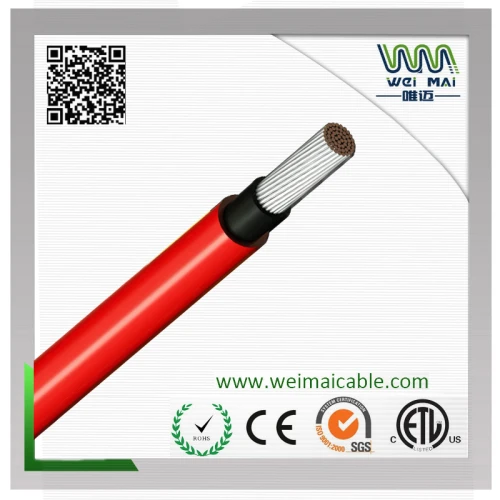

Solar Panel Cable EN50618 SINGLE CORE CABLE
- Model
- EN50618
Review
Description
EN50618 SINGLE CORE CABLE
Product Size | |||||
Series of TUV Cable | Nominal Cross Section (mm²) | Strand Design No./dia(mm) | Conductor Resistance 20℃/km(Ω) | Outer Diameter (mm±0.2) | Jacket Colour |
TUV 1500V | 1.5 | 30/0.25 | ≤13.7 | 5.0 | Black/Red |
2.5 | 49/0.25 | ≤8.21 | 5.3 | Black/Red | |
4.0 | 56/0.285 | ≤5.09 | 6.1 | Black/Red | |
4.0 | 52/0.30 | ≤5.09 | 6.1 | Black/Red | |
6 | 84/0.285 | ≤3.39 | 6.8 | Black/Red | |
10 | 76/0.4 | ≤1.95 | 8.2 | Black/Red | |
Basic Technical Data | |||
Certifications | TUV | ||
Test staandard | EN50618(BLACK/RED) | ||
Certificate No. | B1077320001 | ||
Material | Conductor | Stranded tin plated copper | |
Insulation | XLPE/LSZH | ||
Sheath | XLPE/LSZH | ||
Rated Voltage | AC1.0/1.0KV | DC 1500V | |
Temperature Range | -40℃——90℃ | ||
Min.bending radius | 6xOuter Diameter | ||
Halogen free | Yes | ||
UV resistance | Yes | ||
