Coaxial Cable RG500 Truck Cable
Coaxial Cable RG500 Truck Cable
Price
US $0.2
Model
WMRG50001
Min. Order
10000 meter

Item specifics

Place of Origin
Zhejiang,China(Mainland)
Brand Name
WEIMAI
Conductor Material
CCS/CCA/Solid Copper
Insulation Material
PE
Braid Density
40%-90%
1st shield
Bonded Foil
2st shield
Braided Shield
Jacket
PVC

Product review

Description

Coaxial Cable China Manufacturer Supplier

Coaxial Cable RG500 Truck Cable

Impedance:75±3Ohm                                              Capacitance:50±3pF/Ft(Nom.)

Velocity of Propagain:87%                                      FOB Pront :ShangHai/NingBo

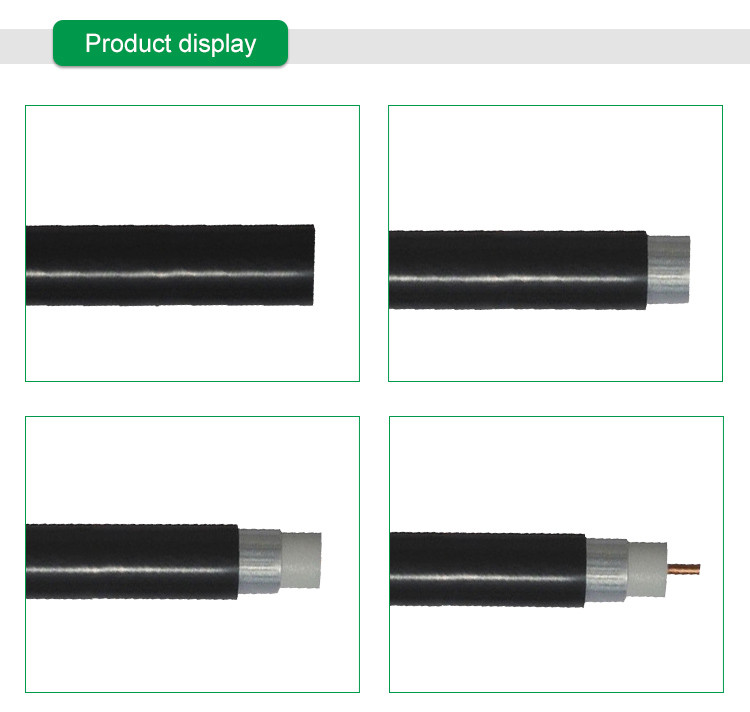

Construction
Center Conductor2.77±0.10mm Solid Copper/Copper Clad Aluminum
Dielectric11.43±0.05mm Foam PE
Outer Conductor12.70mm Aluminum Tube
Outer Conductor Thickness0.64mm
Jacket14.22±0.05mm PVC/PE
Jacket Thickness0.76mm
Messenger            2.77mm Steel
 Jell/APDPer Customers Special Requirement
2) Characteristics
Impedance75+3 Ohm
Capacitance50+3nF/km 15.3+1pF/km
Velocity of Propagation87%
Attenuation
Attenuation[@68o F. (20o C.)]
Frequency (MHz)Max. (dB/100 ft.)Max. (dB/100 ft.)
50.160.52
500.501.64
1080.732.39
1500.862.82
1931.013.31
2501.153.77
3001.264.13
3501.364.46
4001.474.82
4501.565.12
5001.655.41
5501.755.74
6001.836.00
7502.046.69
10002.417.91
