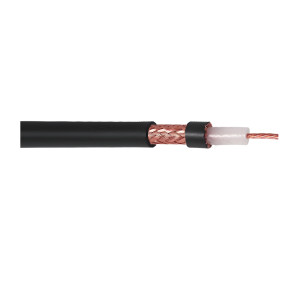

COAXIAL CABLE RG58 50Ohm
Product construction | OD(mm) | |||
Conductor | 19/0.18 copper tin plated(TC) | 0.9 | ||
Dielectric | Polyethylene(PE) | 2.95 | ||
Shield | Tinned copper(TC) | 3.60 | ||
Jcaket | Polyvinylchloride(PVC) | 4.95 | ||
Mechanical characteristic | ||||
Weight per | 3.7kg | |||
Minimum bend radius | 25mm | |||
Operating temperature range | -25℃ to +75℃ | |||
RoHs compliance | 2011/65/EU(RoHs) | |||
Electrical characteristic | ||||
Impedance | 50 | +/-2 ohms | ||
Capacitance | 101 | pF/m.max | ||
Maximum voltage | 5000 | volts | ||
Velocity of propagation | 66 | % | ||
Operating frequency | 1 | GHz | ||
Screening effectiveness | ≥40 | dB(up to 1 GHz) | ||
Insulation resistance | ≥1x108 | MΩm | ||
Max.operating voltage | ≤2.5 | kVrms(at sea level) | ||
Attenuation | ||||
Frenquency MHz | Typical (dB/m) | Max.CW power | ||
100.00 | 0.17 | 332 | ||
400.00 | 0.38 | 166 | ||
700.00 | 0.55 | 125 | ||
1000.00 | 0.69 | 105 | ||
