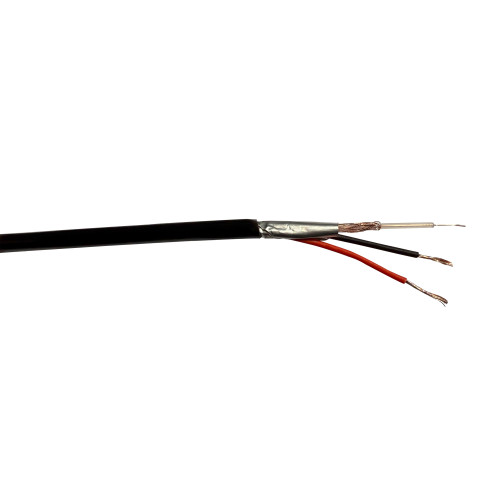

RG174+2Power
Review
Description
COAXIAL CABLE RG174+2Power 50Ohm
Product construction | ||||
Inner conductor | Anaerobic copper wire(Diameter 0.4mm)Bare Copper | |||
Insulation | Soild PE | |||
1st shield | Bare copper/CCA(Coverage≥118%) | |||
2nd shield | AL/PET/AL(Coverage≥118%) | |||
2Power Cable | 2x0.75mm 2Bare Copper/CCA | |||
Jcaket | FR-PVC RoHS CPR Dca/Eca | |||
Other | Color,printing according to customer's requirement | |||
Mechanical characteristic | ||||
Minimum bending radius | 40mm | |||
Inner conductor adhesion force | ＞23N | |||
Application environment | -40℃ to +75℃ | |||
Environmental satandards | ROHS | |||
Packaging length | According to customer's requirement | |||
Electrical characteristic | ||||
ImpedanceΩ | Transmission rate % | Return loss dB | ||
75±3 | 82 | 5---1002MHz＞23 | ||
1003--2000MHz＞20 | ||||
2001--3000MHz＞16 | ||||
Attenuation | ||||
Frenquency MHz | @20℃ dB/100Ft | |||
10.00 | 2.99 | |||
100.00 | 9.50 | |||
400.00 | 22.57 | |||
1000.00 | 36.60 | |||
2000.00 | 51.85 | |||
3000.00 | 64.05 | |||
