RG8 Coaxial Cable
Review
Description

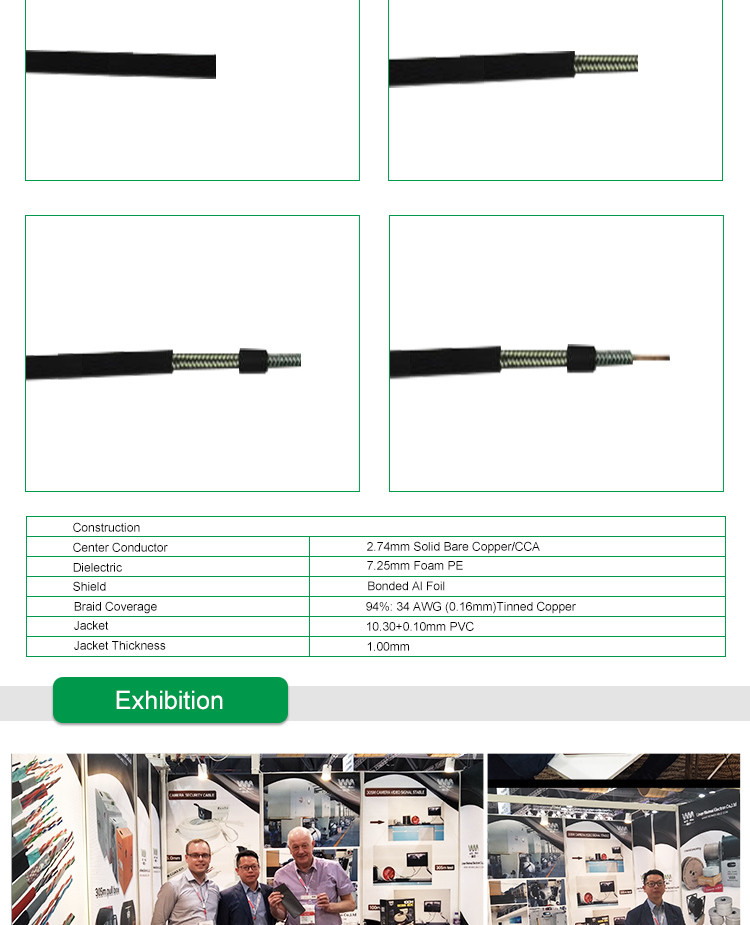

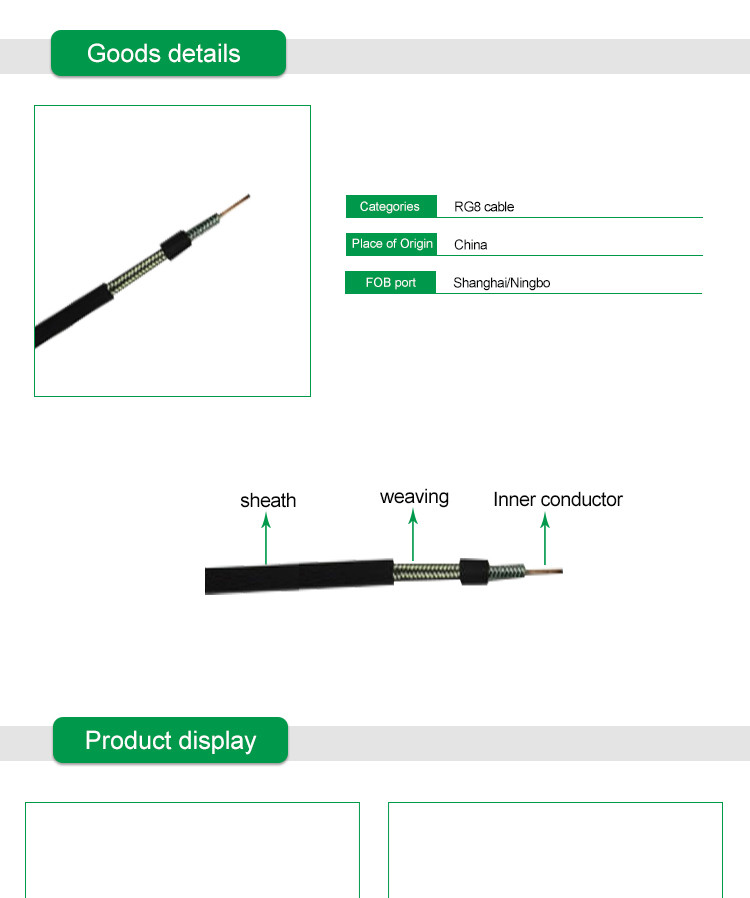

COAXIAL CABLE RG8 50Ohm
Inner Conductor:CCA (Diameter￠2.74mm)
Insulation:Foam PE (Diameter￠7.24mm)
1st Shield:Bonded ALFoil (Coverage≥118%）
2nd Shield:Tinned CCA (Coverage≥80%）
Jacket:FR-PVC/PE (Diameter￠10.16mm)
Other:Color、printing accoring to customer’s requirement
Mechanical characteristic | |||
Minimum bending radius | 110mm | ||
Inner conductor adhesion force | ＞60N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
50±3 | 82 | 5---1002MHz＞23 | |
1003--2150MHz＞20 | |||
2151--3000MHz＞16 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
140.00 | 6.00 | 1.83 | |
350.00 | 9.02 | 2.75 | |
900.00 | 15.02 | 4.58 | |
1800.00 | 21.00 | 6.41 | |
1900.00 | 22.00 | 6.71 | |
