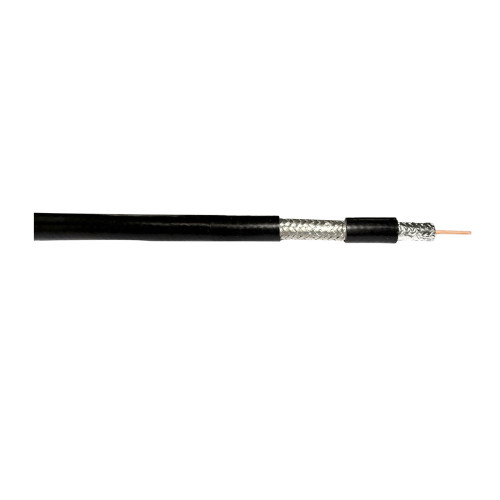

COAXIAL CABLE RG8 50Ohm
Product construction | |||
Inner conductor | CCA(diameterø2.74mm) | ||
Insulation | Foam PE(diameterø7.24mm) | ||
1st shield | Bonded AL foil(coverage≥118%) | ||
2nd shield | Tinned CCA(coverage≥80%) | ||
Jacket | FR-PVC/PE(diameterø10.16mm) | ||
Other | Color,printing according to customer's requirement | ||
Mechanical characteristic | |||
Minimum bending radius | 110mm | ||
Inner conductor adhesion force | ＞60N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Salt spray test | Inner conductor:corrosion≤1.5inches;outer conductor:visualnon-oxidation | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
50±3 | 82 | 5---1002MHz＞23 | |
1003--2150MHz＞20 | |||
2151--3000MHz＞16 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
140.00 | 6.00 | 1.83 | |
350.00 | 9.02 | 2.75 | |
900.00 | 15.02 | 4.58 | |
1800.00 | 21.00 | 6.41 | |
1900.00 | 22.00 | 6.71 | |
