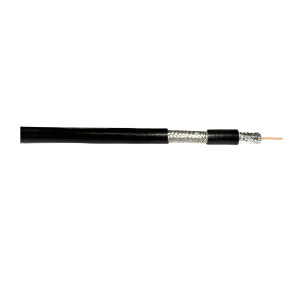

Coaxial Cable RG8 50ohm
- Price
- US $0.1
- Model
- WMRG801
- MOQ
- 10000 meter
Item specifics
- Place of Origin
- Zhejiang,China(Mainland)
- Brand Name
- WEIMAI
- Conductor Material
- CCS/CCA/Solid Copper
- Insulation Material
- PE
- Braid Density
- 40%-90%
- 1st shield
- Bonded Foil
- 2st shield
- Braided Shield
- Jacket
- PVC
Review
Description
COAXIAL CABLE RG8 50Ohm
Inner Conductor:CCA (Diameter￠2.74mm)
Insulation:Foam PE (Diameter￠7.24mm)
1st Shield:Bonded ALFoil (Coverage≥118%）
2nd Shield:Tinned CCA (Coverage≥80%）
Jacket:FR-PVC/PE (Diameter￠10.16mm)
Other:Color、printing accoring to customer’s requirement
Mechanical characteristic | |||
Minimum bending radius | 110mm | ||
Inner conductor adhesion force | ＞60N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
50±3 | 82 | 5---1002MHz＞23 | |
1003--2150MHz＞20 | |||
2151--3000MHz＞16 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
140.00 | 6.00 | 1.83 | |
350.00 | 9.02 | 2.75 | |
900.00 | 15.02 | 4.58 | |
1800.00 | 21.00 | 6.41 | |
1900.00 | 22.00 | 6.71 | |
