COAXIAL CABLE RG6 Triple Shield 75Ohm

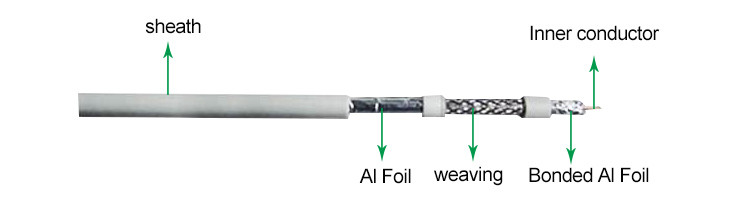

Product Construction
Inner Conductor:Anaerobic Copper Wire/CCS (Diameter￠1.02mm)
Insulation:Foam PE (Diameter￠4.57mm)
1st Shield:Bonded AL/PET/AL (Coverage≥118%）
2nd Shield:AL-Mg (Coverage≥77%）
3rd Shield:Bonded AL/PET/AL (Coverage≥118%）
Jacket:FR-PVC/PE (Diameter￠7.06mm)
Other:Color、printing accoring to customer’s requirement
Mechanical characteristic | |||
Minimum bending radius | 70mm | ||
Inner conductor adhesion force | ＞23N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
75±3 | 82 | 5---1002MHz＞26 | |
1003--1525MHz＞24 | |||
1526--3000MHz＞20 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
5.00 | 1.90 | 0.58 | |
55.00 | 4.92 | 1.50 | |
211.00 | 9.41 | 2.87 | |
350.00 | 12.20 | 3.72 | |
450.00 | 13.97 | 4.26 | |
550.00 | 15.61 | 4.76 | |
750.00 | 18.43 | 5.62 | |
1000.00 | 21.44 | 6.54 | |
1450.00 | 25.87 | 7.89 | |
1850.00 | 29.48 | 8.99 | |
2250.00 | 32.49 | 9.91 | |
3000.00 | 37.51 | 11.44 | |
