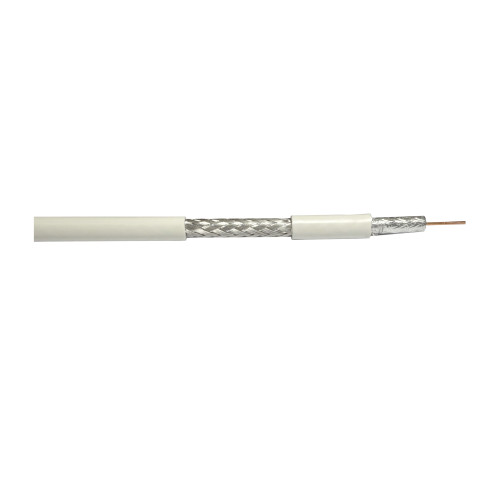

COAXIAL CABLE 17VACT 75Ohm
Product construction | |||
Inner conductor | Anaerobic copper wire/CCS(diameterø1.13mm) | ||
Insulation | Foam PE(diameterø4.80mm) | ||
1st shield | Bonded AL/PET/AL(coverage≥118%) | ||
2nd shield | Al=Mg(coverage≥45%) | ||
3rd shield | PET(coverage≥118%) | ||
Jacket | PVC(diameterø6.93mm) | ||
Other | Color,printing according to customer's requirement | ||
Mechanical characteristic | |||
Minimum bending radius | 70mm | ||
Inner conductor adhesion force | ＞23N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
75±3 | 82 | 5---1002MHz＞23 | |
1003--2152MHz＞20 | |||
2156--3000MHz＞17 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
47.00 | 3.50 | 1.07 | |
100.00 | 5.60 | 1.71 | |
400.00 | 11.70 | 3.57 | |
800.00 | 17.00 | 5.19 | |
950.00 | 18.70 | 5.70 | |
1350.00 | 22.80 | 6.95 | |
1750.00 | 26.40 | 8.05 | |
2150.00 | 29.80 | 9.09 | |
3000.00 | 36.20 | 11.04 | |
