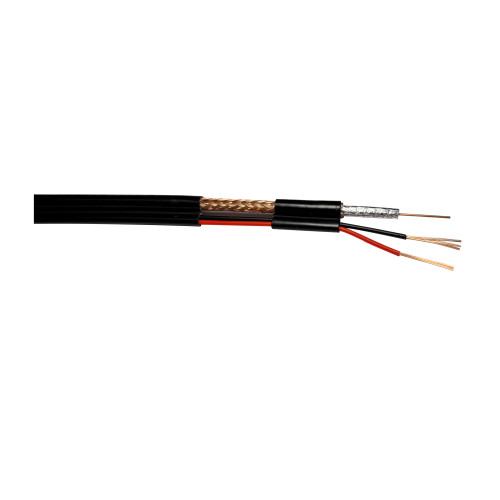

COAXIAL CABLE RG59 With Power 75Ohm
Product construction | |||
Inner conductor | Anaerobic copper wire(diameterø0.81mm) | ||
Insulation | Foam PE(diameterø3.66mm) | ||
1st shield | AL foil(coverage≥118%) | ||
2nd shield | CCA(coverage≥90%) | ||
Jacket | PVC(diameterø6.10mm) | ||
Power cable(red/black) | BC28/0.14 | ||
Other | Color,printing according to customer's requirement | ||
Mechanical characteristic | |||
Minimum bending radius | 50mm | ||
Inner conductor adhesion force | ＞18N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
75±3 | 66 | 5---1002MHz＞20 | |
1003--2200MHz＞17 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
5.00 | 2.82 | 0.86 | |
55.00 | 6.72 | 2.05 | |
211.00 | 12.46 | 3.80 | |
300.00 | 14.59 | 4.45 | |
450.00 | 17.70 | 5.40 | |
750.00 | 22.85 | 6.97 | |
1000.00 | 26.64 | 8.13 | |
1200.00 | 29.40 | 8.97 | |
1450.00 | 32.41 | 9.89 | |
2200.00 | 42.78 | 13.05 | |
