RG6 QUAD SHIELD
Review
Description

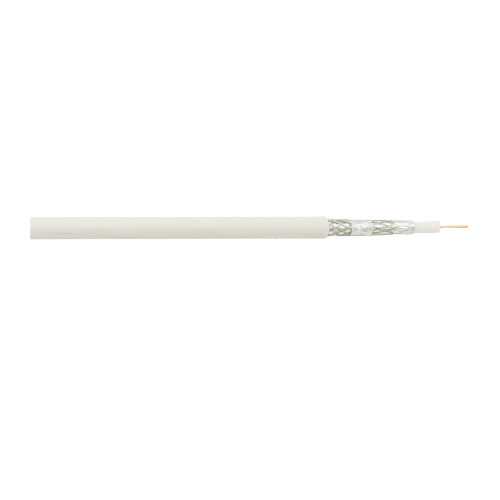

COAXIAL CABLE RG6 Quad Shield 75Ohm
Product construction | |||
Inner conductor | Anaerobic copper wire/CCS(diameterø1.02mm) | ||
Insulation | Foam PE(diameterø4.57mm) | ||
1st shield | Bonded AL/PET/AL(coverage≥118%) | ||
2nd shield | Al-Mg(coverage≥60%) | ||
3rd shield | Bonded AL/PET/AL(coverage≥118%) | ||
4nd shield | Al-Mg(coverage≥40%) | ||
Jacket | FR-PVC(diameterø7.54mm) | ||
Other | Color,printing according to customer's requirement | ||
Mechanical characteristic | |||
Minimum bending radius | 70mm | ||
Inner conductor adhesion force | ＞23N | ||
Application environment | -40℃~+75℃ | ||
Environmental standards | ROHS | ||
Packaging length | According to customer's requirement | ||
Electrical characteristic | |||
Impendance Ω | Transmission rate % | Return loss dB | |
75±3 | 82 | 5---1002MHz＞23 | |
1003--2150MHz＞20 | |||
2151--3000MHz＞16 | |||
Attenuation | |||
Frenquency MHz | @20℃ db/100m | @20℃
db/100Ft | |
5.00 | 1.90 | 0.58 | |
55.00 | 5.25 | 1.60 | |
211.00 | 10.00 | 3.05 | |
350.00 | 12.62 | 3.85 | |
450.00 | 14.43 | 4.40 | |
550.00 | 16.07 | 4.90 | |
750.00 | 18.52 | 5.65 | |
1000.00 | 21.48 | 6.55 | |
1450.00 | 26.23 | 8.00 | |
1800.00 | 29.18 | 8.90 | |
2250.00 | 34.75 | 10.60 | |
3000.00 | 39.02 | 11.90 | |
