Fiber Optic Cable GJFJV-12A1a
Fiber Optic Cable GJFJV-12A1a



FIBER OPTICAL CABLE Indoor China Manufacturer factory GJFJV-12A1a

Temperature:-20℃-60℃                                          Short-term high pressure:60N/100mm

long-termhigh pressure:15N/100mm                    FOB Pront :ShangHai/NingBo

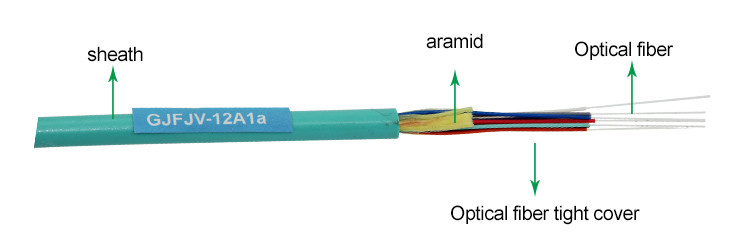

1) Construction
Optical Fiber
Aramid yarn
Outer jacket (PVC )
OD: 7.0-8.0 mm

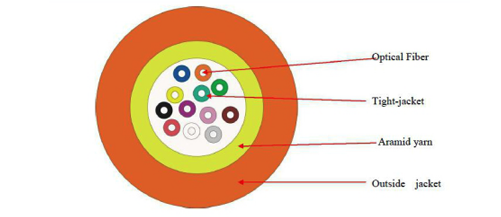

2)Product structure diagram

3)Parameters of fiber
Optical fiber typeUnit   SM G652SM G652D MM 50/125MM 62.5/125MM OM3-550
Wavebandnm1310/15501310/1550850/1300 850/1300 850/1300
Attenuation  dB/k   0.5/0.40.5/0.4 3.5/1.5 3.5/1.5  3.5/1.5

4)Product parameters
Max. Tension(N)60                        150
Max. Crushing Resistance(N/100mm2)100500
Min. Bending Radius                   30D(Dynamic 15D(Static)
torage and operating temperature-20℃-﹢60℃

5)Appearance and packaging
No damage on the surface; no trachoma.
Wooden tray packaging; wood whole seal packaging
Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as much as possible. Other lengths can be agreed upon through consultation.
