GJXH
Temperature Range
Transport/Storage temp:-20℃~+70℃
Installation temp:-5℃~+50℃
Operation temp:-20℃~+70℃

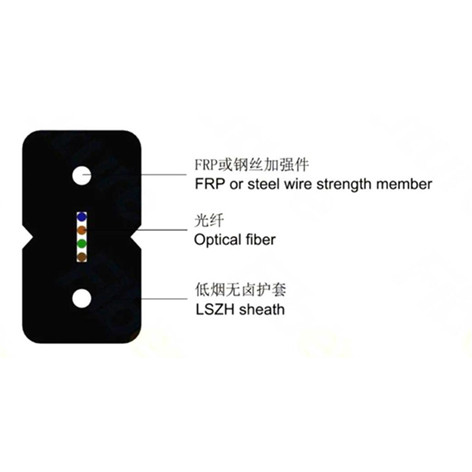

Structural Characteristics | |||
Tight-buffered fiber | 1-4 | Cable sheath | LSZH material |
Strength member | FRP(Fiber reinforce plastic rod)or steel wire | Cable sheath color | Black |
Technical Data | |||||||||
Fiber count | Cable outer dia (mm) | Tight-buffered fiber dia (mm) | Cable weight (kg/km） | Min.bending radius(mm) | Permissble tensile force(N) | Permissble pressure force (N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | ||||
1 | 2.0*3.0 | 0.25mm coating optical
fiber | 8.1 | 60 | 30 | 80 | 40 | 1000 | 500 |
2 | 2.0*3.0 | 0.25mm coating optical fiber*2 | 8.5 | 60 | 30 | 80 | 40 | 1000 | 500 |
4 | 2.0*4.0 | 4 cores optical-fiber rinnon | 9.8 | 60 | 30 | 80 | 40 | 1000 | 500 |
The minimum bend radius(static)is 5D when G.657 fiber is used. | |||||||||
