GYTA(S)33
Temperature Range
Transport/Storage temp:-40℃~+70℃
Installation temp:-30℃~+50℃
Operation temp:-40℃~+70℃

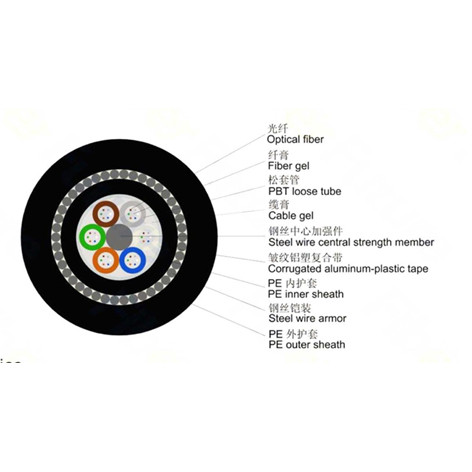

Structural Characteristics | |||
Fiber count | 2~144 | Aluminum-plastic(steel-plastic)tape | Has nice moisture proof property |
Loose tude | Colored fiber in PBTloose tude,filled with fiber gel | Steel wire armor | Enhances cable's side pressure and tensile resistance capability |
Waterproof layer | Cable core filled with cable gel or
water blocking tape,water blocking
yarns | Sheath | Polyethylene(PE) |
Technical Data | ||||||||
Fiber count | Cable outer dia (mm) | Cable weight (kg/km） | Min.bending radius(mm) | Permissble tensile force(N) | Permissble pressure force (N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
2-30 | 15.8 | 390 | 12.5D | 25D | 10000 | 4000 | 5000 | 3000 |
32-36 | 16.4 | 420 | 12.5D | 25D | 10000 | 4000 | 5000 | 3000 |
38-72 | 17.6 | 470 | 12.5D | 25D | 10000 | 4000 | 5000 | 3000 |
74-96 | 19.2 | 550 | 12.5D | 25D | 10000 | 4000 | 5000 | 3000 |
98-120 | 20.8 | 620 | 12.5D | 25D | 10000 | 4000 | 5000 | 3000 |
122-144 | 22.7 | 700 | 12.5D | 25D | 10000 | 4000 | 5000 | 3000 |
"D"is cable dianeter | ||||||||
All sizes and performance values can be specified by customer. | ||||||||
