GYXTA53
Temperature Range
Transport/Storage temp:-40℃~+70℃
Installation temp:-30℃~+50℃
Operation temp:-40℃~+70℃

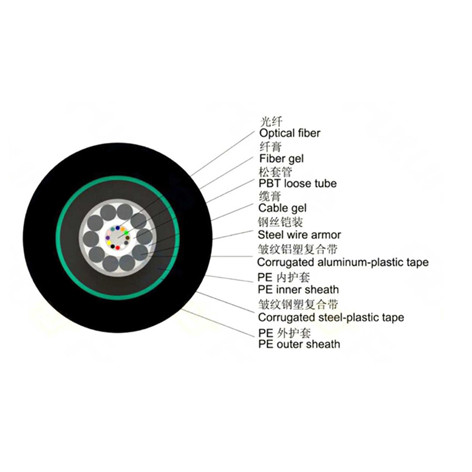

Structural Characteristics | |||
Fiber count | 2~48 | Waterproof layer | Cable core filled with cable gel or water blocking tape,water blocking yarns |
Loose tude | Colored fiber in PBTloose tude,filled with fiber gel | Double Sheaths | Enhances the pressure resistance, shot-proof performance and moisture resistance of the cable |
Armor | Single fine steel wire and corrugated aluminum&steel-plastic tape | Sheath | Polyethylene(PE) |
Technical Data | ||||||||
Fiber count | Cable outer dia (mm) | Cable weight (kg/km） | Min.bending radius(mm) | Permissble tensile force(N) | Permissble pressure force (N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
2-12 | 12.1 | 155 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
14-24 | 13.3 | 222 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
26-36 | 14.3 | 250 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
38-48 | 15.3 | 275 | 12.5D | 25D | 3000 | 1000 | 3000 | 1000 |
"D"is cable dianeter | ||||||||
All sizes and performance values can be specified by customer. | ||||||||
