GYTC8Y(GYFTC8Y)
Review
Description
GYTC8Y(GYFTC8Y)
Temperature Range
Transport/Storage temp:-40℃~+70℃
Installation temp:-30℃~+50℃
Operation temp:-40℃~+70℃

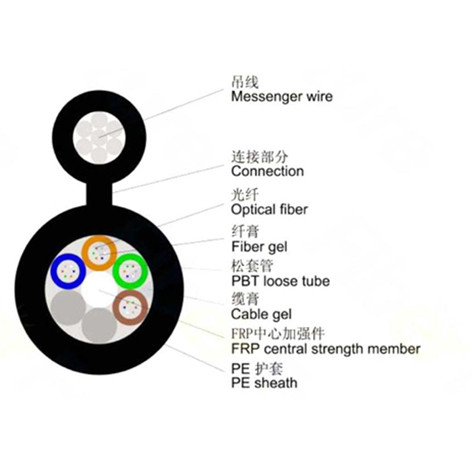

Structural Characteristics | |||
Fiber count | 2~288 | Waterproof layer | Cable core filled with cable gel or water blocking tape,water blocking yarns |
Loose tude | Colored fiber in PBTloose tude,filled with fiber gel | Messrnger wire | Single steel wire or stranded steel wire |
Gentral Strength member | Steel wire or FRP(fiber reinforce plastic rod) | Sheath | Polyethylene(PE) |
Technical Data | ||||||||
Fiber count | Cable outer dia (mm) | Cable weight (kg/km） | Min.bending radius(mm) | Permissble tensile force(N) | Permissble pressure force (N/100mm) | |||
Static | Dynamic | Short-term | Long-term | Short-term | Long-term | |||
2-36 | 9.4*16.8 | 137 | 10D | 20D | 3000 | 3000 | 1000 | 300 |
38-72 | 10.0*17.4 | 148 | 10D | 20D | 3000 | 3000 | 1000 | 300 |
74-84 | 10.7*18.1 | 162 | 10D | 20D | 3000 | 3000 | 1000 | 300 |
86-96 | 11.3.18.7 | 173 | 10D | 20D | 3000 | 3000 | 1000 | 300 |
98-108 | 12.0*19.4 | 186 | 10D | 20D | 3000 | 3000 | 1000 | 300 |
132-144 | 14.0*21.4 | 229 | 10D | 20D | 3000 | 3000 | 1000 | 300 |
"D"is cable dianeter | ||||||||
All sizes and performance values can be specified by customer. | ||||||||
