Coaxial Cable RG6 95% Braiding 75ohm china manufacturer supplier
Coaxial Cable RG6 95% Braiding 75ohm china manufacturer supplier
Price
US $0.09
Model
WM-COAX-002
Min. Order
10000 meter

Item specifics

Place of Origin
China
Brand Name
WEIMAI
Conductor Material
CCS/CCA/Solid Copper
Braid Density
95%
1st shield
Bonded Foil
2st shield
Braided Shield
Jacket
PVC

Product review

Description

Coaxial Cable China Manufacturer Supplier Made in China

Coaxial Cable RG6 95% Braiding 75ohm

Impedance:75±3Ohm             Capacitance:54±3pf/m              Velocity of Propagain:85%

Reutm Los:20dB min(5-2300MHZ)                                          FOB Pront :ShangHai/NingBo

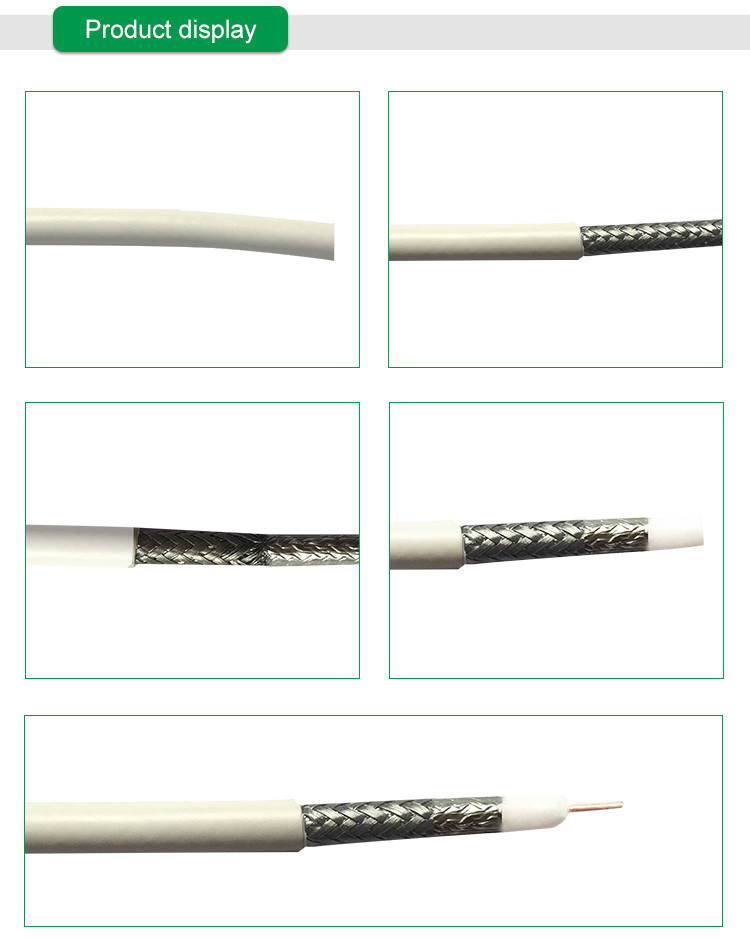

1) Construction

Center Conductor:1.02+0.01mm Solid Copper/Copper Clad Steel
Dielectric:4.75+0.05mmFoam PE
Shield:Bonded Al Foil
Braid Coverage:112X0.15mm Al Alloy  Pitch 22  95% Braidin
Shield:6.80+0.1mm PVC
2) Characteristics
Sparker Test:4000VAC
Impedance:75+3 Ohm
Capacitance:54+3pF/m
Velocity of Propagation:85%
Return Loss:20dB min (5-2300MHz)
3) Attenuation
Attenuation[@68o F. (20o C.)]
Frequency (MHz)Maximum (dB/100 ft.)Maximum (dB/100 m)
50.581.9
501.54.9
1002.06.5
2002.89.2
4004.113.6
7005.618.4
9006.220.3
10006.521.4
14508.026.2
18008.527.9
225010.034.0
