Fiber Optic Cable GJFJV-8B1
Review
Description
FIBER OPTICAL CABLE Indoor China Manufacturer factory GJFJV-8B1
Temperature:-20℃-60℃ Short-term high pressure:60N/100mm
long-termhigh pressure:15N/100mm FOB Pront :ShangHai/NingBo

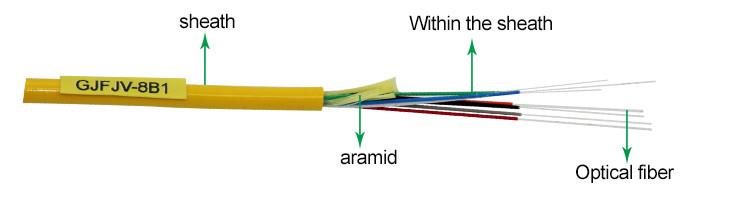

| 1) Construction |
| Fiber Count 8core |
| Tight-buffered Fiber Diameter 850µm±50µm |
| Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow |
| Strength Member Polyester yarn |
| Yellow PVC Outer Jacket Outside diameter: 5.2mm±0.2mm |

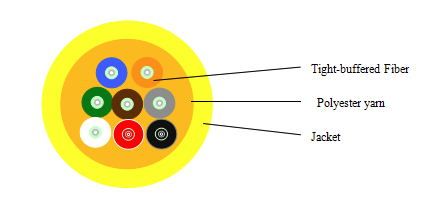

2)Product structure diagram |
| 3)Parameters of fiber |
| Optical fiber type | Unit | SM G652 | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-550 |
| Waveband | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| Attenuation | dB/k | 0.36/0.23 | 0.36/0.23 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| 4)Product parameters |
| Performance | Long-term | Short-term |
| Max. Tension（N） | 200 | 600 |
| Max. Crushing Resistance(N/100mm2) | 200 | 1000 |
| Min. Bending Radius | 20D(Dynamic | 10D(Static) |
| torage and operating temperature | －20℃－﹢70℃ |
| 5)Appearance and packaging |
| No damage on the surface; no trachoma. |
| Wooden tray packaging; wood whole seal packaging |
| Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as much as possible. Other lengths can be agreed upon through consultation. |
