LAN CABLE UTP CAT6 4PAIRS 23AWG BC

Group Lan Cable
Min. Order 50 box
Terms of Payment L/C, D/A, D/P, T/T, Western Union, MoneyGram
Update Time 2017-12-15
  • Description
  • Product review

LAN CABLE China Manufacturer Supplier

LAN CABLE UTP CAT6 4PAIRS 23AWG BC

 Impedance:100+/-15Ω         Capacitance:160pF Max/100m            Velocity of Propagain:69%

Propagation Delay:536 ns/100m Max @350MHz                        FOB Pront :ShangHai/NingBo


Standard ComplianceApplications
ANSI/TIA-568-C.2Category 5E  1000BASE-T(IEEE802.3ab Gigabit Ethernet)
ANSI-TIA/EIA-568-B.2Category 5E100BASE-TX(IEEE802.3u Fast Ethernet)
ISO/IEC11801:2002 class D10BASE-T(IEEE 802.3 Ethernet)
EN50173-1Category 5E 52/155/622 Mbps and 1.2Gbps ATM
EN50288-3-1,IEC61156-5      POE(IEEE802,3af,IEEE802.3at)
UL444,NEC800,NEMAWC63.1 TP-PMD,TPDDI,ISDN,VOIP
ICEAS-90-661 Category 5EAnalog &DigitalVoice ,Digital &Analog Video

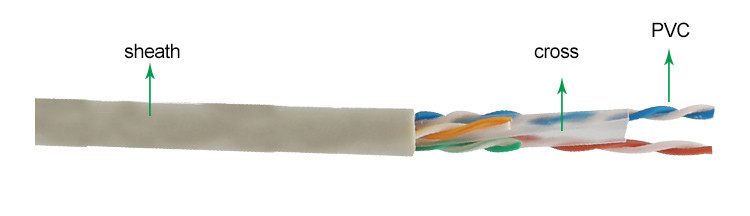

1) Construction
Center Conductor:23 AWG/0.57mm BC  4PAIRS
Insulation:1.02mm HDPE(High Density Polyethylene)
Rip CordUnder Jacket
Jacket6.1mm UV-Proof  PVC  Gray Color
Color Code:Pair1   White/Blue----Blue Pair2   White/Orange--Orange  Pair3   White/Green---Green Pair4   White/Brown---Brown
2) Electrical  Characteristics
Impedance:100+/-15Ω
Mutual Capacitance:5.6nF Max/100m
Capacitance, Unbalance:160pF Max/100m
DC Resistance:9.38 Ω Max./100m
DC Resistance, Unbalance:2% Max
Insulated  Resistance:5000 MΩ/Km
Dielectric Strength:1KV/min
Propagation Delay:536 ns/100m Max @350MHz
Delay Skew:25 ns Max
NVP:69%
Voltage:300Volts AC or DC
Flame RatingCMX(UL444)
Approvals:RoHS Compliant 2002/95/EC
3)Transmission performance
FrequencyMHzAttenuationdB/100mNEXTdB Min.PSNEXTdB Min.ELFEXTdB/100mMinPS ELFEXTdB/100mMin.Return loss
nomMaxminnomminnomminnomminnomminnom
1277807577687165672028
43.868716668565953552331
85.36466.562645053474924.532.5
10662656062485145472533
167.659625759444741432533
208.558615658424539412533
259.5565954564043373924.332.3
31.510.7555853553841353723.631.6
62.515.4505348503235293121.529.5
10019.8475045472831252720.128.1
15525.3444742442427212318.826.8
2002943464143222519211826
25032.8414439412023171917.325.3
30036.6404338401821151716.824.8
35040394237391720141616.324.3
