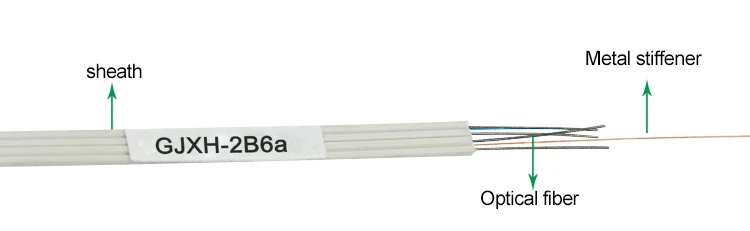

FIBER OPTICAL CABLE Indoor China Manufacturer factory GJXH-2B6a
Temperature:-20℃-60℃ Short-term high pressure:60N/100mm
long-termhigh pressure:15N/100mm FOB Pront :ShangHai/NingBo
| 1) Construction |
|---|
| Steel or FRP strength member |
| Messenger wire |
| Fiber |
| LSZH sheath |

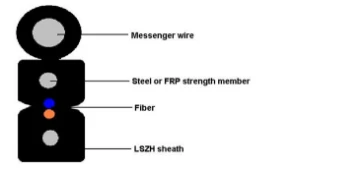

2)Product structure diagram
 |
|---|
| 3)Geometrical Characteristics |
|---|
| Fiber Core | 1 | 2 | 1 | 4 |
|---|
| Cable Dimension(mm) | 2.0X3.0 | 2.0X3.1 | 2.0X3.8 | 2.0X4.0 |
| Cable Weight(kg/km) | 8 | 8.5 | 9 | 10 |
| Performance | Long-term | Short-term |
|---|
| Max. Tension（N） | 30 | 30 |
| Max. Crushing Resistance(N/100mm2) | 60 | 15 |
| Storage and operating temperature | －20℃－﹢60℃ |
|---|
| 5)Transmission Characteristics |
|---|
| Fiber Type(core/cladding dimension) | G.657A |
|---|
| | SMF |
| Attenuation(dB/km) | 1310/1550(nm) |
| Attenuation(dB/km) | ≤0.40/0.30 |
| Minimum Bandwidth(MHz.km ) | ............. |
| 6)Appearance and packaging |
|---|
| No damage on the surface; no trachoma. |
| Wooden tray packaging; wood whole seal packaging |
| Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as much as possible. Other lengths can be agreed upon through consultation. |
