Fiber Optic Cable GYXTW-4B1
Fiber Optic Cable GYXTW-4B1

Review

Description

FIBER OPTICAL CABLE outdoor China Manufacturer factory GYXTW-4B1

Temperature:-40℃-70℃                                          Short-term high pressure:60N/100mm

long-termhigh pressure:15N/100mm                    FOB Pront :ShangHai/NingBo


1) Construction

Coated outside diameter: 125±0.1um    Optical fiber diameter:242±7um      UV color fiber:Standard chromatogram  -Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua

Tube filling compound(Gel)
PBT loose tube
Steel wire
Water-blocking tape
Steel Polyethylene Laminate
Black PE out jacket             Outside diameter: 8.0±0.2mm

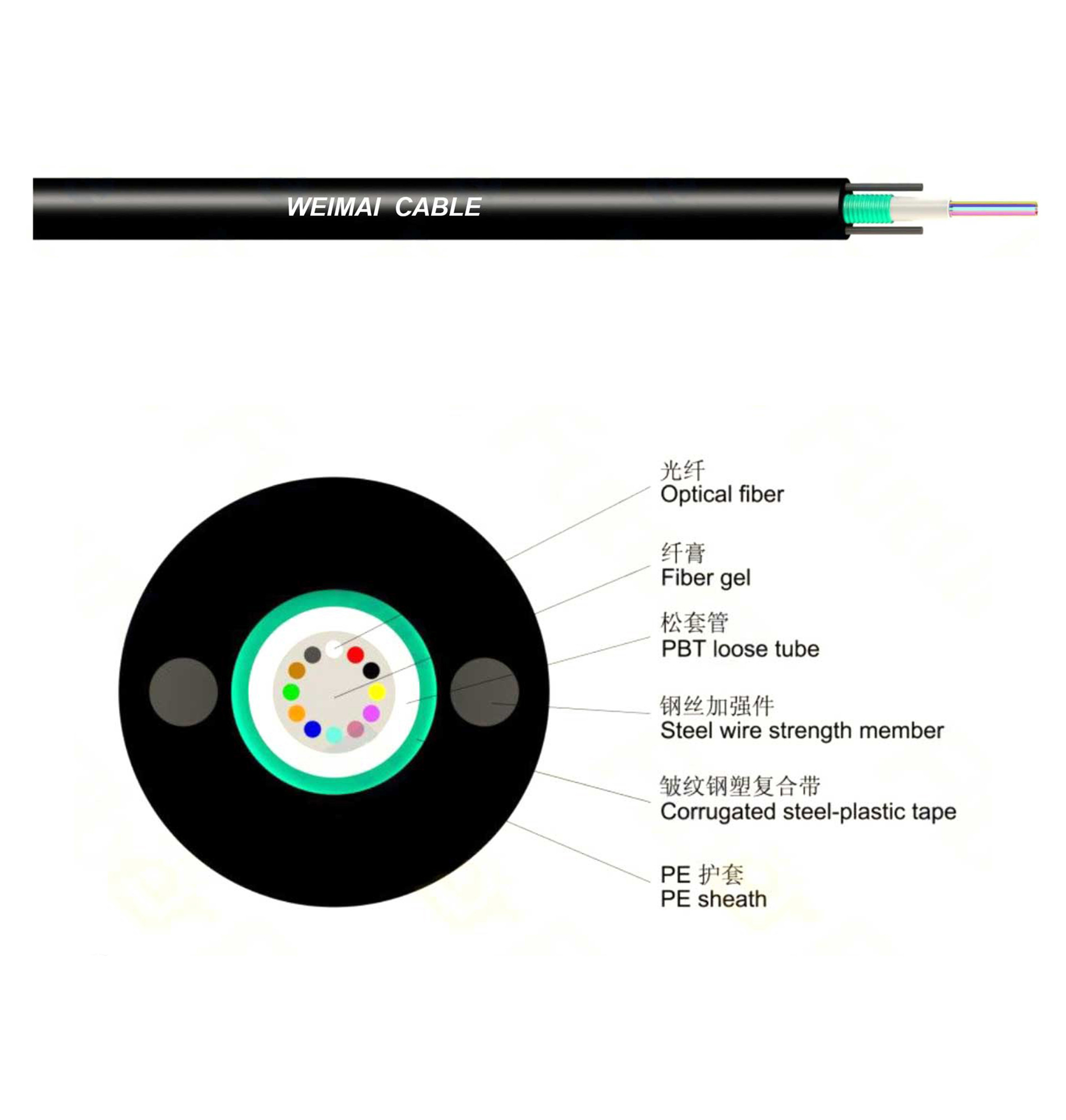

2)Product structure diagram

3)Parameters of fiber
Optical fiber typeUnit   SM G652SM G652D MM 50/125MM 62.5/125MM OM3-550
Wavebandnm1310/15501310/1550850/1300 850/1300850/1300
Attenuation  dB/k   0.36/0.230.36/0.233.0/1.03.0/1.03.0/1.0

4)Product parameters
PerformanceLong-termShort-term
Max. Tension(N)250                      500
Max. Crushing Resistance(N/100mm2)5001000
Min. Bending Radius                   30D(Dynamic 15D(Static)
torage and operating temperature-40℃-﹢70℃

5)Appearance and packaging
No damage on the surface; no trachoma.
Wooden tray packaging; wood whole seal packaging
Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as much as possible. Other lengths can be agreed upon through consultation.
