FIBER OPTICAL CABLE Indoor China Manufacturer factory GJFJV-4A1b
Temperature:-20℃-60℃ Short-term high pressure:60N/100mm
long-termhigh pressure:15N/100mm FOB Pront :ShangHai/NingBo
| 1 | Core Diameter | μm | 62.5±2.5 |
| 2 | Cladding Diameter | μm | 124.8±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| 4 | Core-Cladding Concentricity Error | μm | ≤1.5 |
| 5 | Coating Diameter | μm | 245±7 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Bandwidth(min.) | 850nm | MHz·km | 200 |
| | | 1300nm | MHz·km | 600 |
| 9 | Attenuation Coefficient | 850nm | dB/km | ≤2.7 |
| | | 1300nm | dB/km | ≤0.6 |

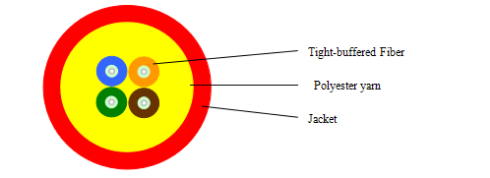

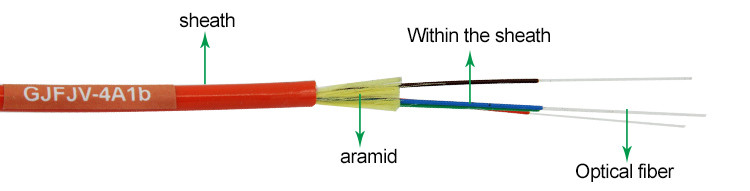

2)Product structure diagram
 |
| Optical fiber type | Unit | SM G652 | SM G652D | MM 50/125 | MM 62.5/125 | MM OM3-550 |
| Waveband | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| Attenuation | dB/k | 0.36/0.23 | 0.36/0.23 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 |
| Performance | Long-term | Short-term |
| Max. Tension（N） | 200 | 660 |
| Max. Crushing Resistance(N/100mm2) | 200 | 1000 |
| Min. Bending Radius | 20D(Dynamic | 10D(Static) |
| torage and operating temperature | －20℃－﹢70℃ |
| 5)Appearance and packaging |
| No damage on the surface; no trachoma. |
| Wooden tray packaging; wood whole seal packaging |
| Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as much as possible. Other lengths can be agreed upon through consultation. |
